Secure-ALPS: Self-Protection Technology for Embedded Software

Embedded systems operate under far more restrictive conditions than conventional IT environments. They are often deployed in isolated networks, difficult to update, and physically exposed in the field. In these environments, a single security breach can compromise not only availability but the reliability of the entire system.

Modern attackers no longer rely solely on external intrusion attempts. Instead, they directly target application internals through reverse engineering, binary tampering, runtime debugging, and behavioral analysis. These threats cannot be fully mitigated through network security or access control alone. Ultimately, the application itself must be capable of defending itself.

What Is RASP?

RASP stands for Runtime Application Self-Protection, a security approach that enables applications to actively protect themselves during execution.

Unlike conventional security models that defend applications from the outside, RASP embeds protection mechanisms directly into the application itself. The application is no longer just a protected asset — it becomes an active security component.

Limitations of Traditional Security

Traditional security architectures are primarily designed around external protection layers, including:

• Network-based security such as firewalls and IDS/IPS
• Authentication and access control systems
• Operating system-level security policies
• Endpoint protection solutions

While effective against unauthorized access and network intrusions, these approaches become less effective when attackers directly target the application itself.

• Reverse engineering leaked executables
• Injecting backdoors through binary modification
• Analyzing internal runtime behavior with debuggers
• Launching insider attacks from trusted systems

Once attacks move inside the application boundary, external defenses alone are no longer sufficient.

Secure-ALPS: An Embedded Self-Protection Platform

Secure-ALPS is a multi-layered self-protection platform purpose-built for embedded environments. Rather than providing a single security feature, it protects both executable binaries and the runtime environment as an integrated security architecture.

Secure-ALPS combines ALPS-Shield, an application runtime protection framework, with ALPS-Crypto, a cryptographic trust module. Together, they deliver an integrated security platform that includes obfuscation, anti-debugging, resource encryption, binary integrity verification, whitelist-based execution control, and secure cryptographic protection.

The platform is designed around one core principle: enabling the application itself to actively defend against attacks.

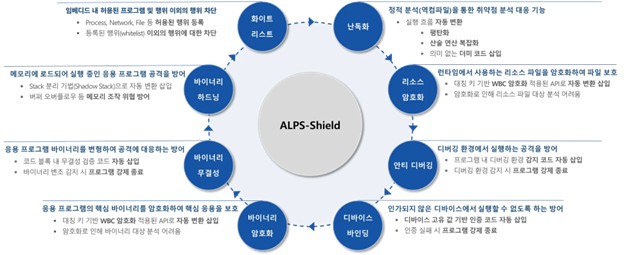

ALPS-Shield: Eight Core Protection Technologies

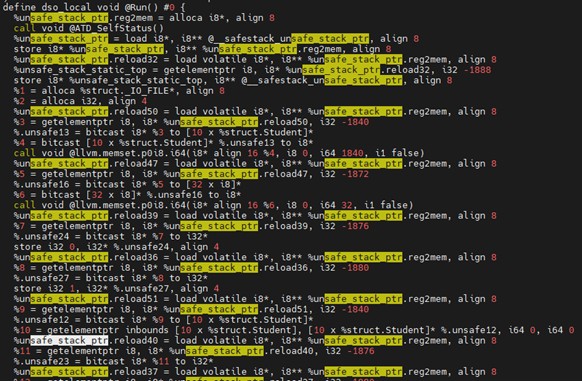

1. Obfuscation That Disrupts Reverse Engineering

ALPS-Shield uses advanced obfuscation techniques such as execution-flow transformation, dummy code insertion, and control-flow complexity enhancement to make binary analysis significantly more difficult.

The platform also incorporates LLVM-based obfuscation enhancement, anti-disassembly techniques, and dummy block insertion that interfere with commercial reverse engineering tools such as IDA Pro. This strengthens resistance against decompilation, signature-based analysis, and logic extraction attacks.

2. Anti-Debugging That Blocks Runtime Analysis

ALPS-Shield detects debugging and analysis attempts using techniques such as ptracer inspection, parent process cmdline verification, and TracerPid detection.

When debugging activity is identified, the application can immediately terminate execution, effectively preventing dynamic runtime analysis attacks.

3. Binary Encryption That Protects Core Logic

Key code blocks and application binaries can remain encrypted until runtime, where they are decrypted only when execution is required.

Even if an executable is leaked, attackers cannot easily analyze the application in plaintext form, providing strong protection for proprietary algorithms and intellectual property.

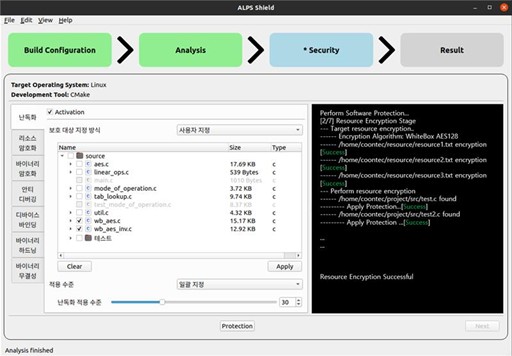

4. Resource Encryption Beyond Executable Protection

Embedded applications frequently rely on configuration files, model files, and data assets in addition to executable binaries.

ALPS-Shield encrypts these resources using WhiteBox AES and ARIA-based cryptography, ensuring plaintext data exists only in runtime memory.

5. Binary Integrity Verification Against Tampering

The platform continuously verifies whether executing code has been altered. If tampering is detected, execution can be blocked or forcibly terminated.

Hash-based integrity algorithms such as SHA-256 are applied, with configurable verification frequency to balance security and performance.

6. Device Binding That Restricts Unauthorized Execution

Device binding validates execution permissions using hardware-specific identifiers such as CPU information and board IDs.

Even if application files are leaked externally, they cannot simply be executed on unauthorized hardware.

7. Binary Hardening That Minimizes the Attack Surface

ALPS-Shield strengthens the internal code structure itself, making vulnerability analysis, hooking, and exploitation more difficult.

Obfuscation, encryption, and integrity verification are tightly integrated rather than deployed as isolated features. As a result, bypassing one protection layer does not compromise the entire system.

8. Whitelist-Based Execution Control

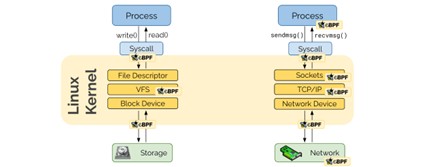

ALPS-Shield includes a whitelist agent that restricts execution to authorized behavior only. Using eBPF (extended Berkeley Packet Filter), the platform controls allowed processes, file access, and network activity inside embedded devices.

Unauthorized executables and abnormal activities are blocked by default, structurally preventing malicious code execution. Combined with IMA-based integrity verification, this creates a proactive security model capable of blocking unauthorized behavior before compromise occurs.

ALPS-Crypto: Cryptographic Trust Assurance

ALPS-Crypto serves as the cryptographic trust foundation of Secure-ALPS. It is more than a simple encryption library — it is a dedicated security module designed to ensure platform trust and protect cryptographic keys.

While ALPS-Shield protects application execution, ALPS-Crypto establishes trust across the entire system through cryptographic security.

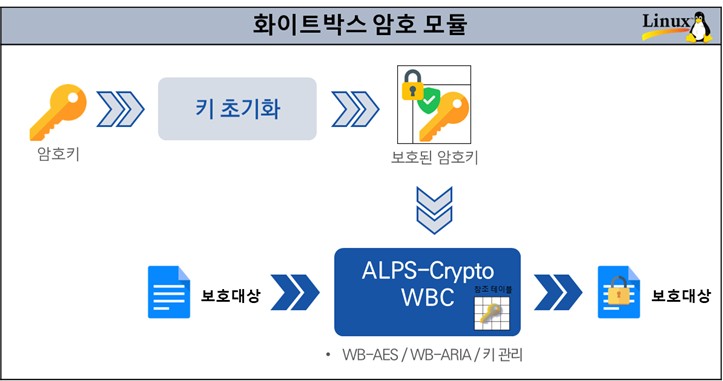

1. White-Box Cryptography for Key Protection

ALPS-Crypto performs cryptographic operations using White-Box Cryptography. This approach assumes attackers may have full visibility into memory, debugging interfaces, and runtime execution environments.

Instead of storing cryptographic keys in directly extractable form, keys are distributed and embedded throughout the algorithm structure itself, making extraction significantly more difficult.

ALPS-Crypto provides:

• WhiteBox AES and ARIA-based encryption and decryption
• Key initialization and table-based key management
• Hashing, integrity verification, and HMAC authentication
• DRBG-based random number generation

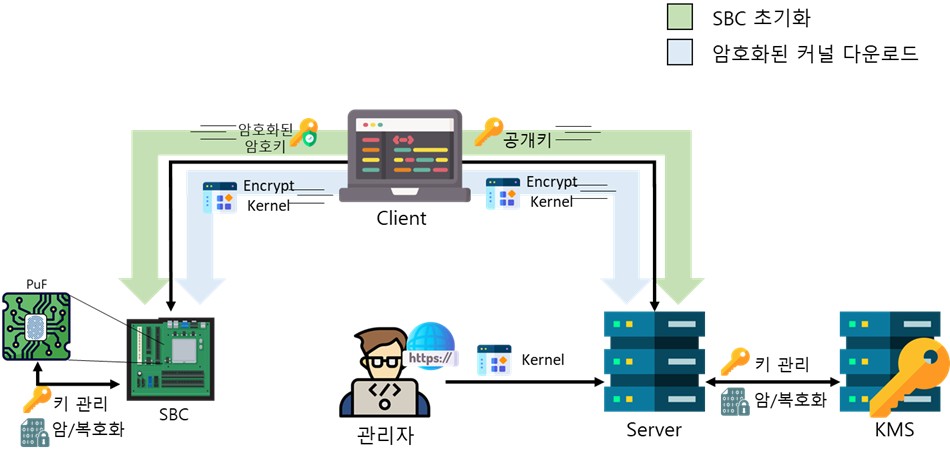

2. Secure Boot-Based Chain of Trust

ALPS-Crypto Secure Boot establishes a chain of trust by verifying the integrity of each system component from boot to runtime.

Public key signatures and hash verification are used to validate bootloaders, kernels, firmware updates, and other critical components. If tampering is detected, the next execution stage is immediately blocked.

Verification keys and cryptographic operations are protected within ALPS-Crypto itself, including white-box protection mechanisms, making key extraction and bypass attempts extremely difficult.

This enables the platform to proactively block firmware tampering, malicious updates, and boot-path manipulation before execution even begins.

Ideal Use Cases for Secure-ALPS

• Embedded devices deployed long-term in the field with limited update capability
• Defense and military systems requiring high trust assurance
• Industrial control systems and OT environments
• Medical devices and IoT products subject to regulatory compliance
• Commercial embedded products requiring strong IP and algorithm protection

The Future of Embedded Security

Embedded security is evolving from perimeter defense to self-protection. Attackers no longer target only network boundaries — they directly analyze executables, memory structures, runtime logic, and application behavior.

In this environment, organizations need more than another security product. They need applications capable of protecting themselves.

Secure-ALPS was designed precisely for this reality. Through a structurally integrated, multi-layered defense architecture, it transforms applications from passive assets into active security entities.

Embedded security should no longer be treated as an afterthought. It must be built into the software from the design stage forward.

How securely is your product protecting its own executable today? Experience the next generation of embedded software self-protection with Secure-ALPS.
